IP66-rated 300x200x150mm carbon steel electrical enclosure with lockable hinged door, galvanised backplate. Shop at EXTG Australia with Afterpay or Zip Pay.

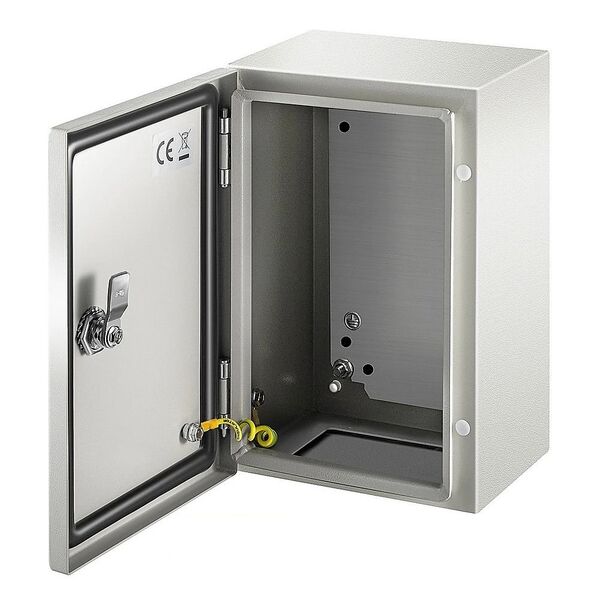

If you've got electrical components that need proper protection — whether it's on a job site, in a factory, or around the home — this wall mount enclosure from EXTG is a solid, no-nonsense solution. Built from 1.5 mm cold-rolled carbon steel with an epoxy polyester powder coat, it's tough enough to handle the elements and built to last without giving you grief down the track.
The IP66 rating means it's seriously well-sealed against dust and water — the foam strip around the door does a great job keeping moisture out even in rough conditions. Inside, you've got a detachable 2 mm galvanised backplate ready to take circuit breakers or terminals, pre-installed grounding screws, and smooth cable entry cut-outs with a removable bottom plate to keep your cabling tidy and safe. The lockable hinged door adds a layer of security so you're not worried about unauthorised access either.
It's a well-priced enclosure that punches above its weight for both trade and DIY use — and you can grab it on Afterpay if you'd rather spread the cost.
Specifications
- Colour: Grey white
- Material: 1.5 mm carbon steel
- Coating: Epoxy polyester powder coating
- IP rating: IP66 (designed to meet NEMA 1, 2, 4, 4X, 12)
- Outer dimensions (H x W x D): 30 x 20 x 15 cm
- Inner dimensions (H x W x D): 29.7 x 19.7 x 11.65 cm
- Mounting backplate: 25 x 15 cm, 2 mm thick galvanised steel
- Connection type: Hinged, lockable
- Net weight: 4.25 kg
Package Contents
- 1 x Electrical enclosure box
- 1 x Galvanised mounting plate (pre-installed)
- 2 x Keys
- 1 x Set of wall mounting brackets
- 1 x Bottom sealing plate
(V63-955301)
