SKU: V28-PSUSEAOEMS350GT

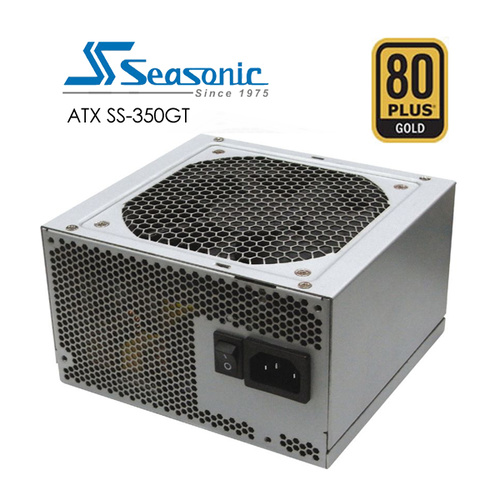

Seasonic Switch Mode Power Supply ATX12V (v2.31), SS-350GT (Active PFC)
Free shipping to 95% of Australia
You Might Also Want to Add
More infoMake 4 interest-free payments of $25.09 fortnightly and receive your order now.
Features:
- 80 PLUS Gold (Up to 90% efficiency at 115Vac, 50% load)
- Support the latest Intel & AMD Socket
- PCI Express & Serial ATA ready
- DC to DC converter design
- Low ripple & noise
- Super low noise fan control
- Short circuit protection on all outputs
- Over voltage protection
- Over power protection
- 100% hi-pot test
- 100% burn in, high temperature cycled on/of
Specifications:
- Form factor: ATX
- Dimension: 150mm(L)*140mm(W)*86mm(H)
- Safety: CTUVus / CUL*, TUV, CB, BSMI? (* for SSP-350GT )
- EMI/RFI: CE, FCC, C-tic
- Input frequency: 47/63 Hz
- Inrush current, cold start: 100Amax.
- Line regulation: +/-1% typical
- Load regulation: +/-5% typical
- Cross regulation: +/-5% typical
- Ripple / noise:1%
- MTBF, full load @ 25℃amb. : >100K hours (Excluding the DC fan)
- Power Factor Correction: Active PFC 99% typical
|
DC Output: |
AC Input: 100~240Vac 50/60Hz |
||||||
|
Model |
3.3V |
5V |
12V1 |
12V2 |
-12V |
5Vsb |
Total Power |
|
SS-650RT |
20A |
20A |
54A |
54A |
0.3A |
2.5A |
650W |
|
100W |
648W |
3.6W |
12.5W |
||||
|
SS-550RT |
20A |
20A |
45A |
45A |
0.3A |
2.5A |
550W |
|
100W |
540W |
3.6W |
12.5W |
||||
|
SS-450RT |
20A |
20A |
37A |
37A |
0.3A |
2.5A |
450W |
|
100W |
444W |
3.6W |
12.5W |
||||
|
SS-350GT |
12A |
16A |
29A |
29A |
0.3A |
2.5A |
350W |
|
80W |
348W |
3.6W |
12.5W |
||||
Cables and Connections:
|
M/B wire(mm) |
GPU wire(mm) |
Peripheral wire(mm) |
||
|
24P |
4+4P |
6+2P |
B/S/SATA |
Length |
|
550 |
550 |
550/100 |
2SATA |
270/150 |
- EPS 4+4 PIN X 1
- 20+ 4 MAIN CONNECTOR X 1
- 4PIN MOLEX X 2
- LONG SATA X 4
- FLOPPY X 1
Connectors:
- Main Power (24/20P) x 1
- ATX12V (4P/8P) x 1
- Peripherals: SATA, HDD, FDD
