SKU: HW0161-2PC-1200MM
Linear Guide Rail 2PCS 1200mm + 4PCS HGH20CA Slider Block Bearing Steel CNC
Free shipping to 95% of Australia
You Might Also Want to Add
More infoMake 4 interest-free payments of $38.90 fortnightly and receive your order now.
DESCRIPTION
Build yourself a cartesian robot with your linear rails. Pick the right size. Use the right servomotor or a stepper motor to control your robot’s movement. Soon you will have your own robotic crane.

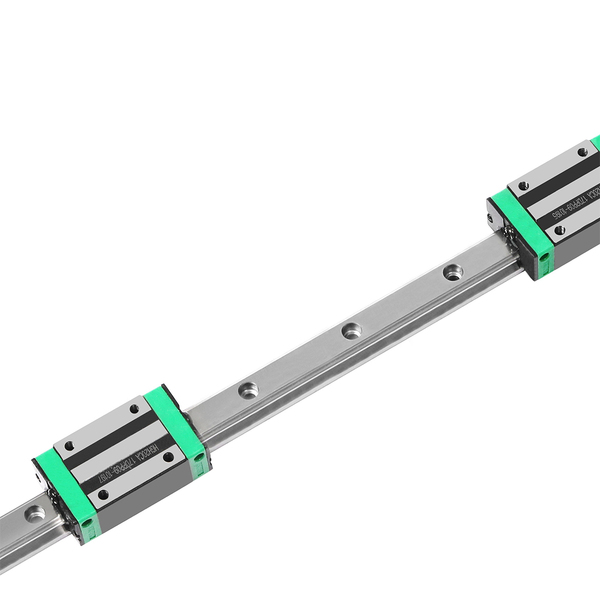

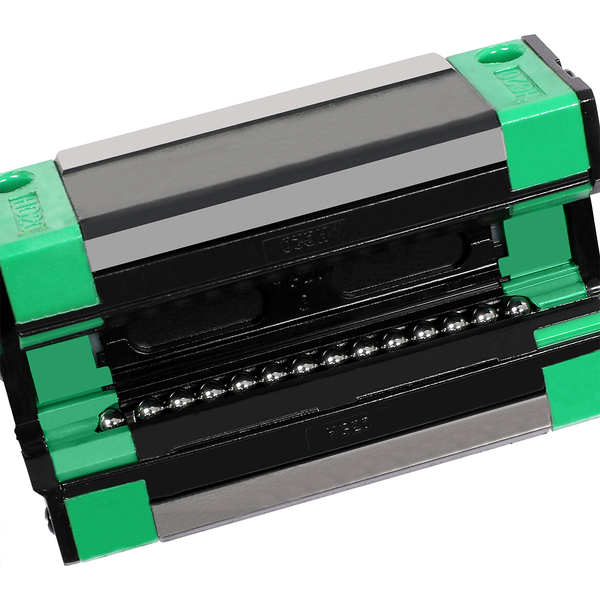

When you need a high level of accuracy you go for a linear rail. Each block has four rows of ball bearings to smoothly glide along the rail. Build your own CNC from scratch.
Got a broken machine with a linear rail. Pick yourself up a new linear rail guide. They can withstand both download and lift-off loads as well as moment loads. Superior to round shaft guides.
Maximise bearing life by using the two rails and four blocks in parallel. This will ensure that deflection is minimised and that your machine can handle high loads. For when load capacity stiffness and travel accuracy is important.
Each linear rail comes with pre-drilled holes. Just use M5 bolts to connect to your mounting system. Make sure your mount is level to get the best life out of your rail blocks.
Key Features:
- Premiumcarbon steel and GCR15 ball bearing steel
- Evenly self-align the load with the 4-pointball bearing contact design
- High accuracy hardness and rigidity
- Compatible with all HG series steel ball bearing rail blocks
- Rail blocks slide smoothly and easily
- Easy to install with pre-drilled holes
- Rustproof lubrication system
- Widely used for reciprocating linear motion machines
SPECIFICATION
- Material: Carbon steel + GCR15 ball bearing Steel
- Model: HGH20CA
- Fixed bolt size:M5

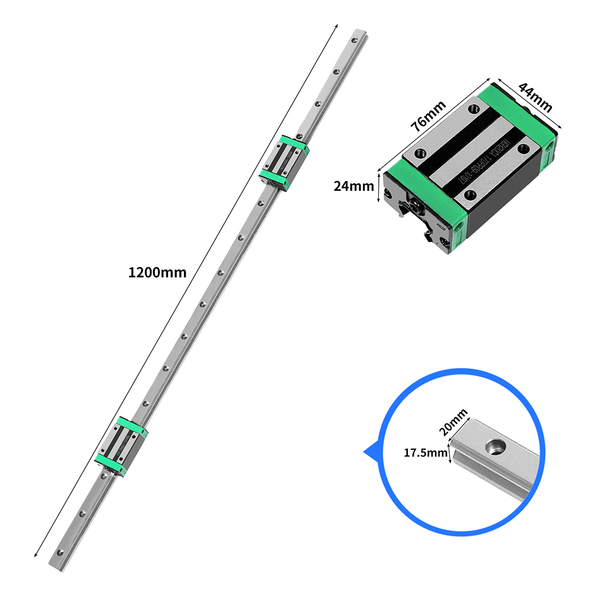

- Block dimension: 44mm x 76mm x 24mm (L x W x H)
- Rail dimension: 20mm x 17.5mm (L x W)
- Rail length: 1200mm
PACKAGE CONTENTS

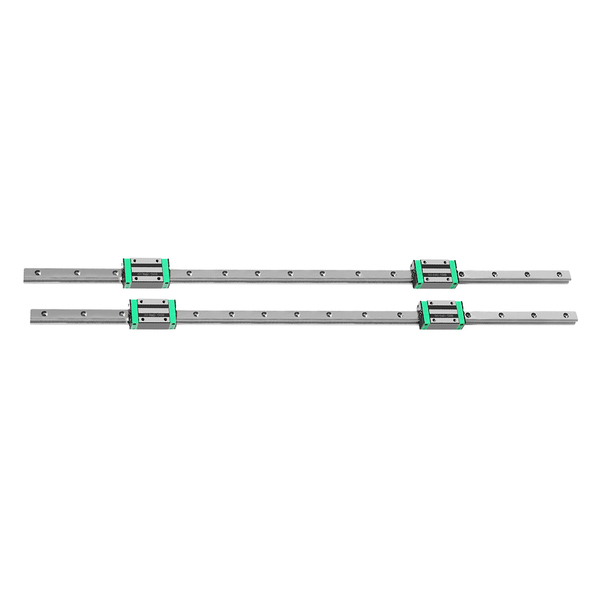

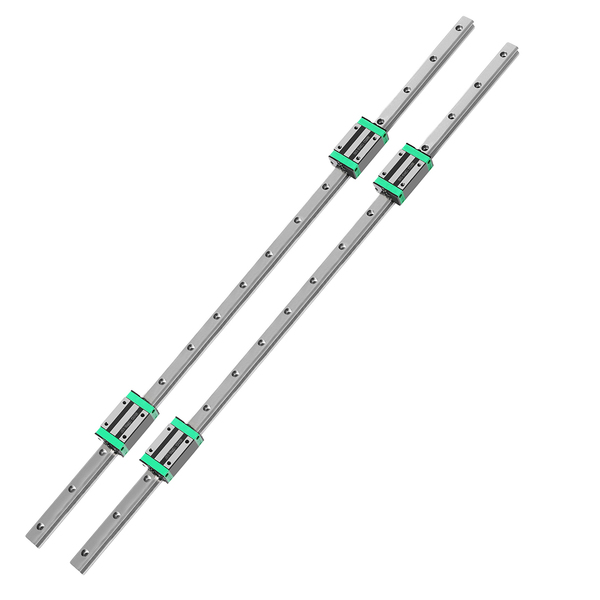

- 2 X Linear Guide Rail
- 4 X Linear Guide Block
(HW0161-2PC-1200MM)
