SKU: V28-HDDICY555SSK5BY

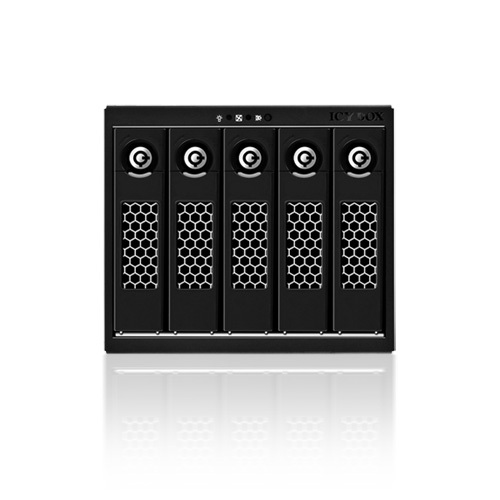

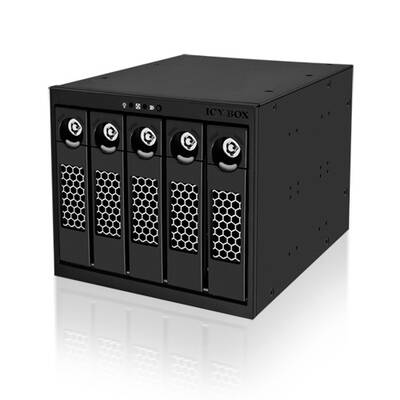

ICY BOX- IB-555SSK, 5bay Dual Channel SATA/SAS Backplane
Free shipping to 95% of Australia
You Might Also Want to Add
More infoMake 4 interest-free payments of $77.34 fortnightly and receive your order now.
Specifications
5x 3.5" SATA or SAS HDD in 3x 5.25" bay
2x host connector (dual channel) for each SAS HDD
Hard disk capacity not limited
SATA host interface 3.0 Gbit/s
HDD tray with key lock
Hot Swap
Technical Data |
Model: | IB-555SSK | ||
Article No.: | 55105 | ||
EAN Code: | 4250078184416 | ||
Brand: | ICY BOX | ||
Category: | Backplane | ||
Colour: | Black | ||
Material: | Aluminium | ||
Required space: | 3x 5.25" | ||
Carrier: | 5x | ||
Fan: | 1x 80x80x25 mm (Detachable) | ||
HDD size (inch): | 3.5" | ||
HDD size (cm): | 8.89 cm | ||
HDD capacity: | No limit | ||
HDD interface: | 5x 3.5" SAS/SATA | ||

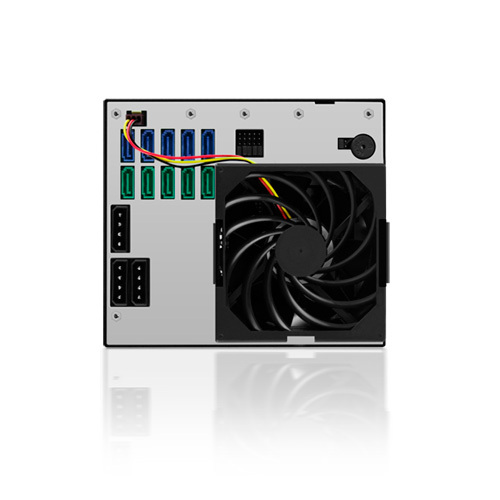

Host interface: | 10x SATA (Dual Channel) | ||
Transfer rate: | Up to 3.0 Gbit/s | ||
Hot Swap: | Yes | ||
Plug & Play: | Yes | ||
Lock: | Yes | ||
Operating system: | OS independent | ||
Power connector: | 2x Molex 4Pin (12+5 V) | ||
Alarm: | Audio alarm for fan failure and over-heat,Audio alarm mute switch button on the front,Alarm temperature adjustable (45C, 55C, 75C) | ||
LED: | Power, Fan failure, Over heating, additional LED on each tray for HDD presence, access and failure | ||

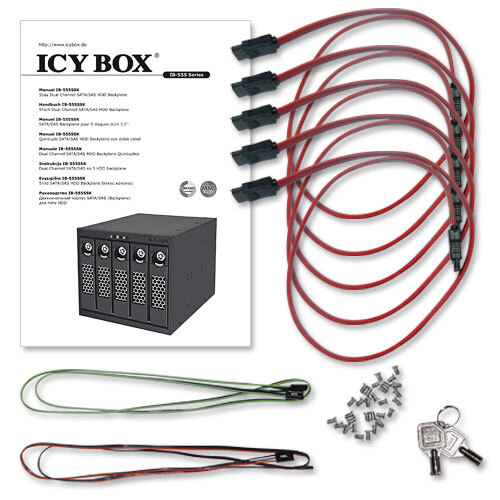

Packing content: | 1x IB-555SSK backplane, 8x case screw,22x HDD screw, 2x key, 2 sets of access and HDD fail signal cable, 5x SATA cable (with latchable connectors), 1x manual |
Logistic Data |
Packing unit: | 6 pcs./carton | ||
Total weight: | 15 kg/carton | ||
Gross weight (incl. packing): | 2.5 kg | ||
Net weight: | 1.8 kg | ||
Dimension/carton: | 575x422x305 mm | ||
Dimension of packing box: | 287x200x190 mm | ||
Dimension of article: | 225x145x127 mm | ||
Country of origin: | Taiwan | ||
Import tax: | 84733080 |
