GIANTZ TIG Inverter Welder Portable MMA ARC Stick DC Gas Welding Machine 220Amp
Free shipping to 95% of Australia
You Might Also Want to Add
More infoMake 4 interest-free payments of $96.45 fortnightly and receive your order now.

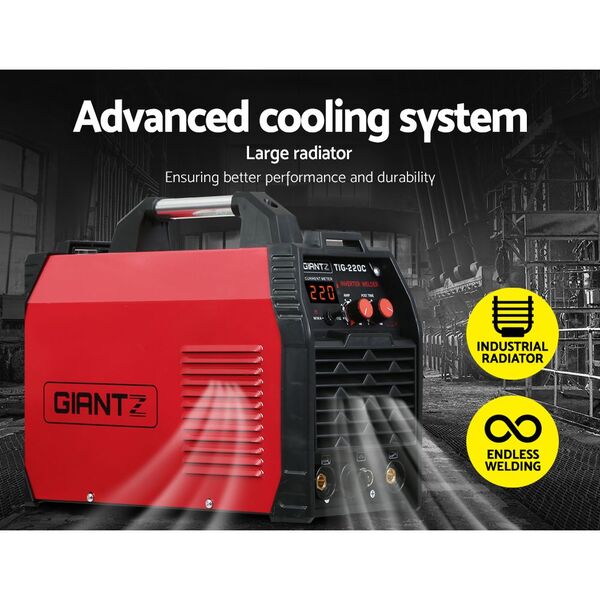

The Giantz Pro-series Welder offers professional quality TIG/MMA welding with results that matter. It features IGBT DC inverter technology that allows a huge increase in duty cycle, deep penetration and a smooth welded finish. The machine can handle an array of electrodes and rod sizes. The output current is adjustable between 15A and 220A to produce flawless TIG results with all kinds of metals including mild steel, stainless steel, carbon steel and even sheet metal. The advanced cooling system with its large fan and radiator also ensure that heat is dissipated easily for better welding performance and durability. Operating the machine is also enhanced with the digital display and user-friendly controls. Not least, safety is never taken for granted as the machine is protected from overloading current, overheating and dust and water protection. The compact machine is lightweight for easy handling and comes with a full range of accessories for hassle-free welding.
Features:
- 2-in-1 TIG/MMA Welder
- Outstanding duty cycle
- Super Stable arc force and post flow control
- Compact and lightweight
- IGBT inverter technology
- Super stable DC inverter technology
- Current stablisation and auto increase
- Industry-standard DIN sockets
- Adjustable output current range 15A to 220A
- Outstanding 30,000 MTPF hours cooling
- Overheating, over current, and over/under voltage protection
- Works with a range of rod sizes
- SAA, EMC, CE and C-Tick certified
Specifications:
Power Voltage: Single Phase 220V ±15%, 50/60Hz
Power Plug: 15A AU Standard
Output: TIG 15-220 Amps / 18V
MMA 20-220 Amps
Duty Cycle: TIG (Amps/Duty Cycle): 180A@ 60%, 220A@ 40%
MMA (Amps/Duty Cycle): 170A@60%, 220A @ 35%
Insulation Class: F
Shell Protection Grade: IP21
Pilot Arc Mode: HF
Air Hose Fitting: 1/4""
TIG and MMA Connections: Quick Connect Brass Fittings
Welding Electrodes: Up to 4.0mm
MMA Electrode Cable Length: 1.8m
Earth Clamp Cable Length: 1.2m
TIG torch Cable Length: 4m
Power Cord Length: 1.8m
Generator Recommended: 7.5kVA
Dimensions: 36cm x 16cm x 29cm
Product Weight: 6kg

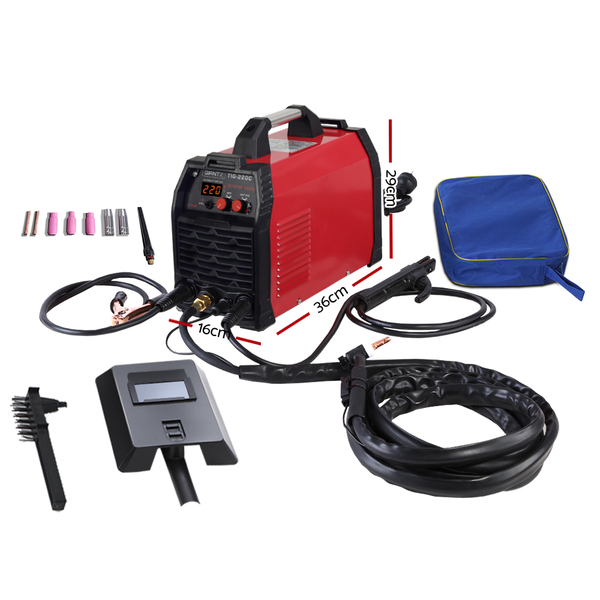

Product Contents:
- 1 x GIANTZ Inverter Welder
- 1 xTIG torch Lead
- 1 xElectrode Holder Lead
- 1 xEarth Clamp Lead
- 1 xWire Brush
- 1 xWelding shield
- 1 xCollet and nozzles set
- 1 xLong Back Cap
- 1 xTorch pouch
- 1 xUser Manual
(WLD-INV-TIG-CLA-22)
