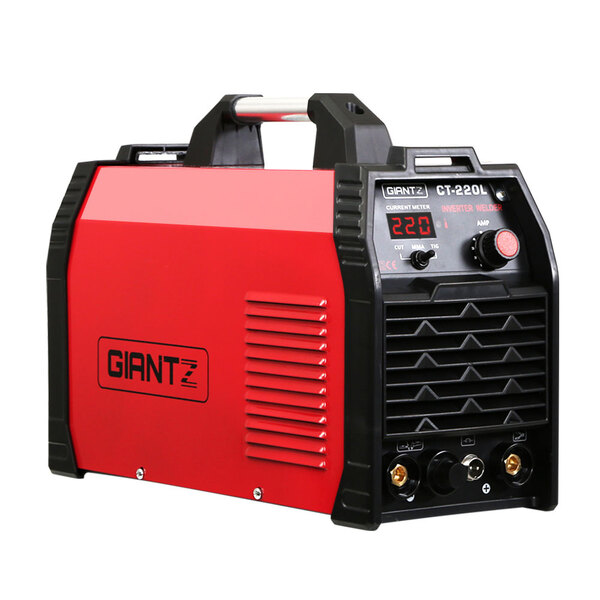

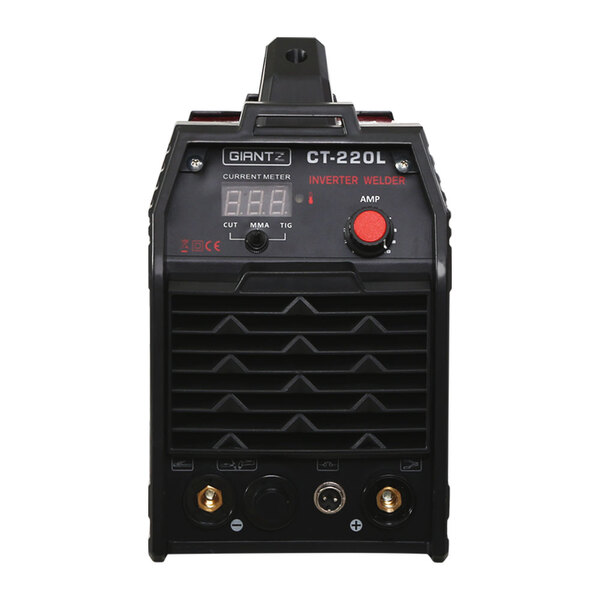

Giantz 220Amp Inverter Welder Plasma Cutter TIG iGBT DC Welding Machine Portable

Free shipping to 95% of Australia


$466.01
RRP $1,168.95
SAVE $702.94 (60%)
Sold Out

afterpay More info.

Make 4 interest-free payments of $116.50 fortnightly and receive your order now.

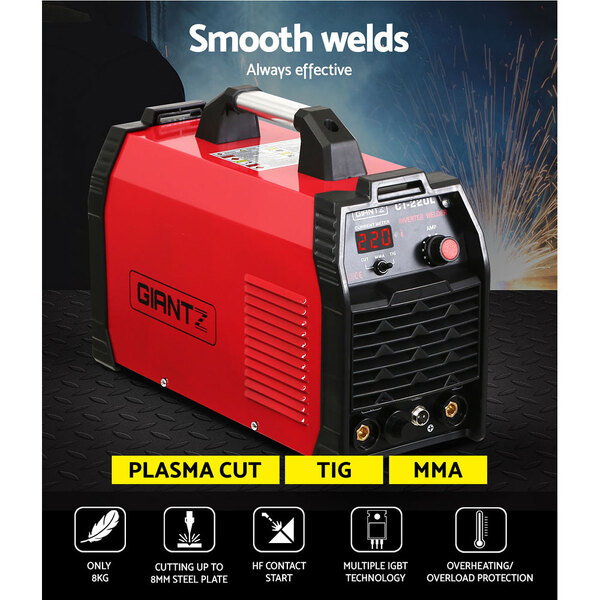

The Giantz 3-in-1 Pro-series Welder offers professional quality TIG/MMA/CUT welding with results that matter. It features IGBT DC inverter technology that allows a huge increase in duty cycle, deep penetration and a smooth welded finish. The machine can handle an array of electrodes and rod sizes. The output current is adjustable between 30A and 220A to produce flawless results with all kinds of metals including mild steel, stainless steel, carbon steel and even sheet metal. The plasma cutting feature also allows for cuts of up to 8mm thick and employs HF start that allows the torch tip to be placed directly onto the work piece for a cleaner starting cut as well as more accurate cutting. The advanced cooling system with its large fan and radiator also ensure that heat is dissipated easily for better welding performance and durability. Operating the machine is also enhanced with the digital display and user-friendly controls. Not least, safety is never taken for granted as the machine is protected from overloading current, overheating and dust and water protection. The compact machine is lightweight for easy handling and comes with a full range of accessories for hassle-free welding.

NOTE: This item comes with a 15A plug and requires a current converter adaptor for use with 10A sockets.

Features:
  • Multifunction CUT/TIG/MMA Welder

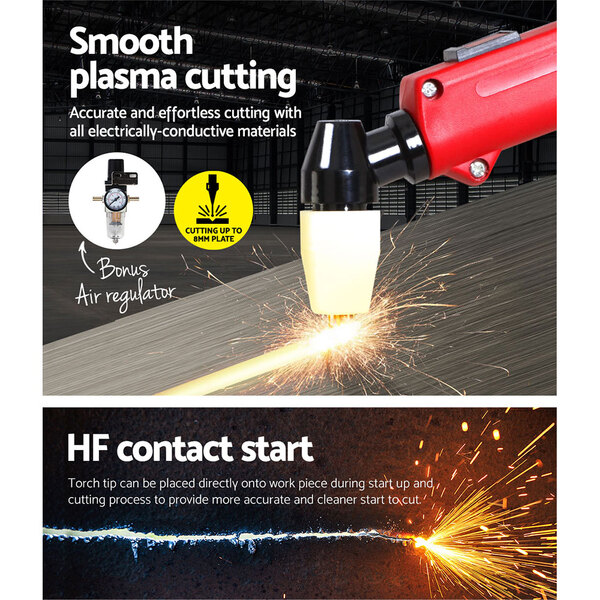

  • HF contact start technology
  • 8kg weight
  • Outstanding duty cycle
  • Super stable arc force
  • IGBT inverter technology
  • Super stable DC inverter technology
  • Current stablisation and auto increase
  • Industry-standard DIN sockets
  • Adjustable output current range 30A to 220A
  • Outstanding 30,000 MTPF hours cooling
  • Overheating, over current, and over/under voltage protection
  • Works with a range of rod sizes

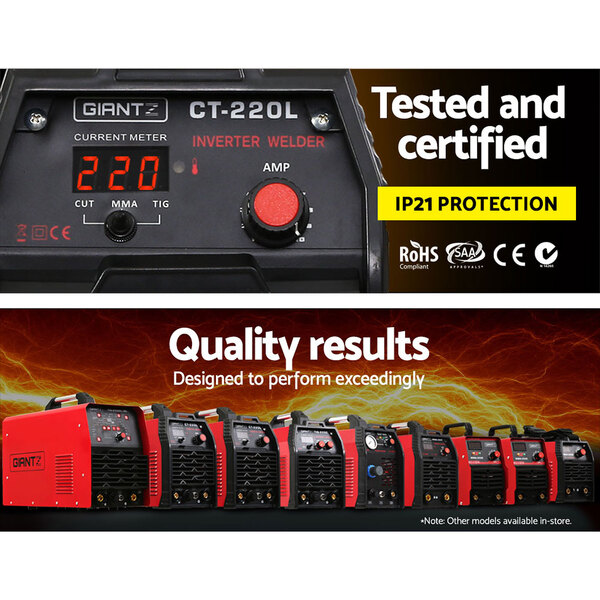

  • SAA, EMC, CE and C-Tick certified

  • Specifications:
  • Power Voltage: Single Phase 220-240V ±15%, 50Hz
  • Power Plug: 15A AU Standard
  • Rated Output Current TIG: 220A MMA: 220A CUT: 60A
  • Current Range TIG: 15-220A MMA: 15-220A CUT: 20-60A
  • Gas Flow TIG: 2-5L/min CUT:80L/min
  • Input Air Pressure 0.45Mpa
  • No load power: 50W
  • Efficiency: 85%
  • Insulation Class: F
  • Cut Thickness: 1-12mm
  • Pilot Arc Mode HF Touch
  • Shell Protection Grade: IP21
  • Welding Electrodes: Up to 4.0mm
  • Plasma Torch Length: 4m
  • MMA Electrode Cable Length: 1.8m
  • Earth Clamp Cable Length: 1.2m
  • TIG torch Cable Length: 4m
  • Power Cord Length: 1.8m
  • Generator Recommended: 8kVA
  • Dimensions: 42cm x 16.5cm x 27cm
  • Product Weight: 8kg

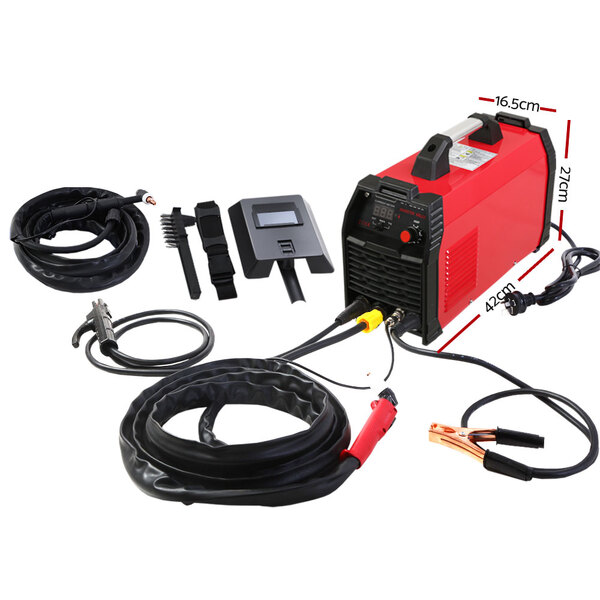

  • Product Contents:
  • GIANTZ Inverter Welder x 1
  • Plasma torch with accessories x 1
  • TIG torch Lead x 1
  • Electrode Holder Lead x 1
  • Earth Clamp Lead x 1
  • Welding Mask x 1
  • Packing Bag for Touch Lead x 1
  • Collet x 1
  • Stubby Ceramic Nozzle x 1
  • Long Back Cap x 1
  • Wire Brush x 1
  • User Manual x 1
  • (WLD-INV-CUT-LUX-TT)
