SKU: FCA-022.010.0052

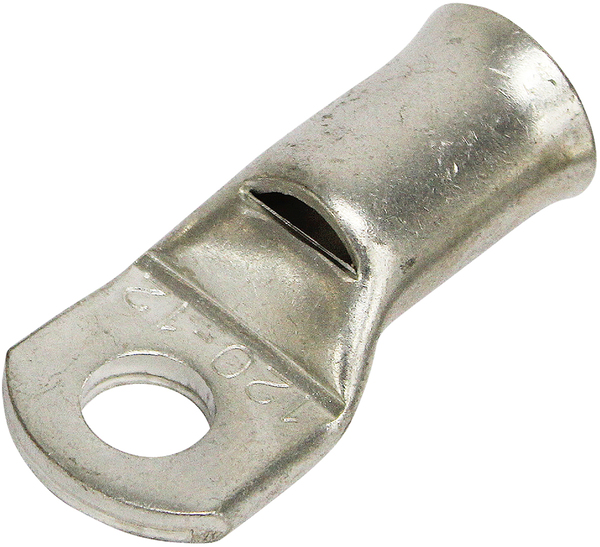

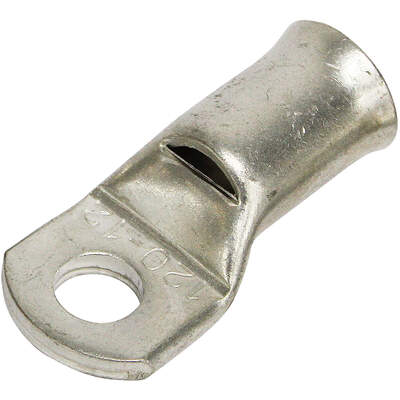

Copper Lug Bell Mouth 50mm² M8 Stud - 50 Pack

Free shipping to 95% of Australia


$112.07
RRP $172.42
SAVE $60.35 (35%)
Sold Out

afterpay More info.

Make 4 interest-free payments of $28.02 fortnightly and receive your order now.

Copper Lug Bell Mouth 50mm² M8 Stud - 50 Pack

Copper cable lugs are used to terminate the ends of the electrical cable so they can be connected to other electrical equipment, such as busbars and electric motors. Cable lugs are highly conductive and can handle very high currents. Our range of Copper Lugs/Links complies to Australian & New Zealand standard AS/NZS4325 Part 1:1995.

Features and Benefits

  • Wide range of sizes
  • Can be crimped using handheld crimper or hydraulic crimper
  • Easy insertion of a cable

Specifications

QUANTITY IN PACK 50
CONDUCTOR SIZE 50mm²
STUD M8
ID SIZE 9.5
PALM WIDTH 19mm
BARREL LENGTH 22mm
FULL LENGTH 49mm
A/F HEX 10.4
MATERIAL Copper Grade C11000
CONDUCTIVE MATERIAL Copper 99.9% pure
Oxygen content 30 p.p.m Max.
Tensile strength 205 Mpa Min
Ductile rating 40%
Final metal state fully annealed
Electroplating material tin 99.9% pure
Other metals lead + antimony
Thickness 5 -10 microns
TOTAL CONDUCTIVITY 99.9% IACS
TOTAL RESISTIVITY 1.72 micro-ohm cm
OPERATING TEMPERATURE -55°C to 155°C due to oxygen-free copper
COMPLIANCES AS/NZS4325 Part 1:1995
