SKU: VX-210284
8 pcs Engine Timing Tools for VAG TSI and TFSI Engines
Free shipping to 95% of Australia
You Might Also Want to Add
More infoMake 4 interest-free payments of $20.57 fortnightly and receive your order now.

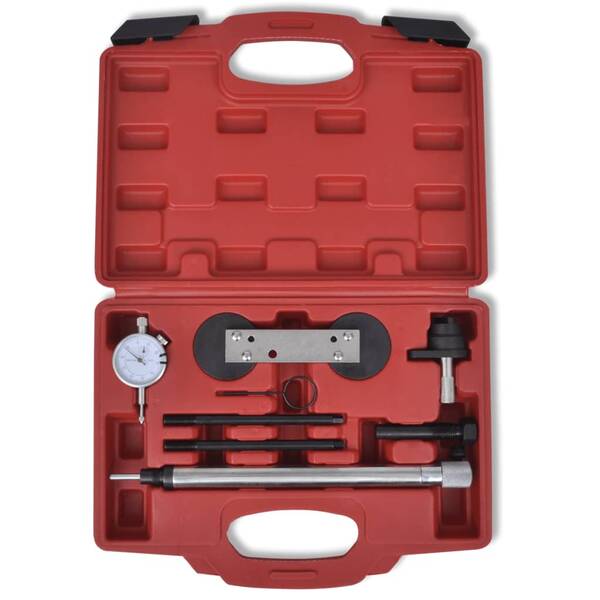

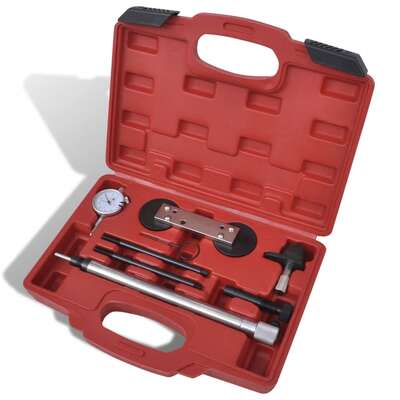

This engine timing tool set is designed for professional engine repairs, for example, the installation and removal of camshafts, replacement of timing chains, checking and adjustment of the camshaft timing, renewal of the cylinder head gasket, etc. Manufactured to a high standard, this set is durable enough for daily use in the workshop. This timing tool set is delivered in a blow moulded case for easy transport and storage.
- Kit size: 30 x 22 x 6.5 cm (L x W x H)
- For professional engine repair
- Durable construction

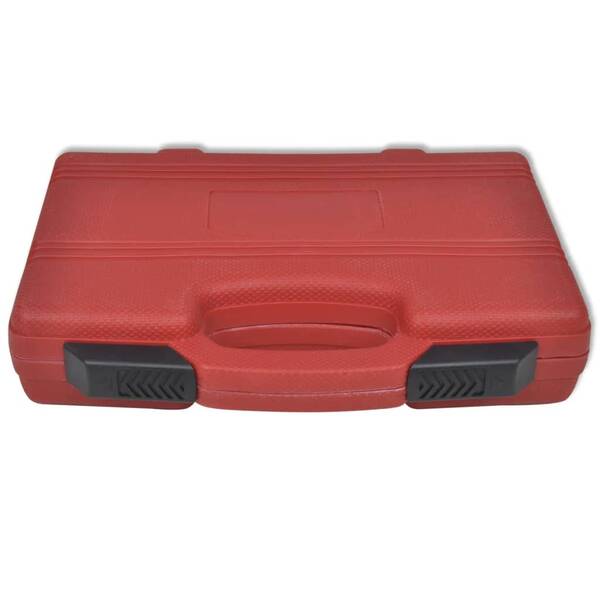

- Supplied in a blow moulded carry case for easy transport and storage

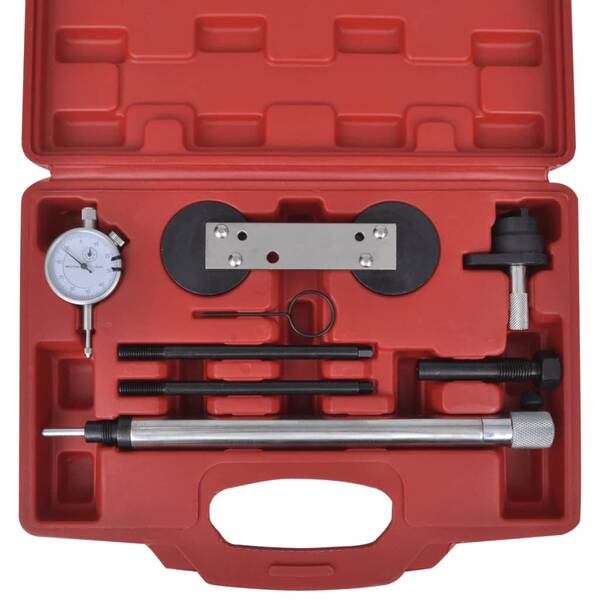

- Set includes:
- Cam lock to be used as OEM T10414
- Crankshaft sprocket locking pin to be used as OEM T10341
- Camshaft fixing tool to be used, such as OEM T10171
- Locking pin to be used as OEM T40011

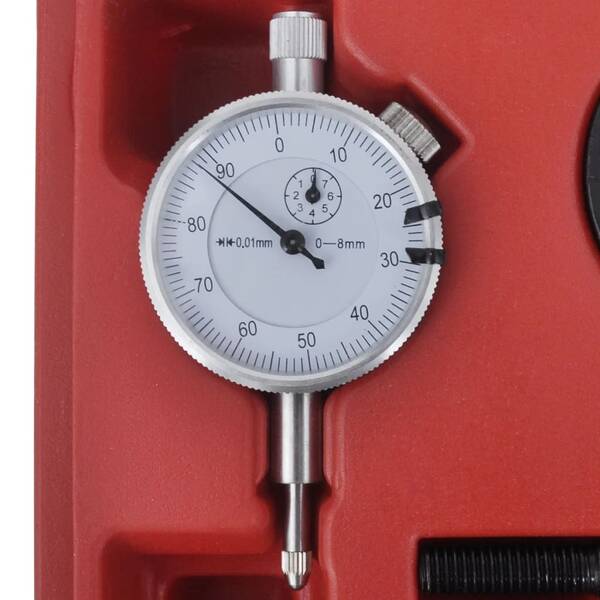

- Dial gauge, 0.01 mm accuracy, circular dial with analog display, diameter 41 mm
- Clamping shank, 8 mm long
- Indicator holder with 274 mm total length, outer thread M14 x 1.25 mm, for setting top dead center
- 2 guide pins with 135 mm length, 24 mm long male thread M8 x 1.25 mm, mutual external hexagon wrench size 6 mm
- Suitable for:
- VAG engines 1.2 liter TSI:
- With engine code CBZA, CBZB and CBZC
- e.g.Audi A1, A3, A3 Sportback and A3 Cabriolet
- e.g.Seat Altea, Altea XL, Ibiza, Ibiza Sport Coupe, Leon and Toledo
- e.g.Skoda Fabia, Fabia, Octavia, Rapid, Roomster and Yeti
- e.g.VW New Beetle, Caddy, Golf, Golf Plus, Golf Cabriolet, Golf Variant, Jetta, Polo and Touran
- VAG engines 1.4 FSI:
- e.g.VW Golf 4 and 5 and Polo 9N
- VAG engines 1.6 FSI:
- With engine code AXU, BAG, BKG, BLF, BLN and BLP
- e.g.Audi A3, VW Golf, Passat and Touran
(VX-210284)
