SKU: V28-ELETENDTEG1024F

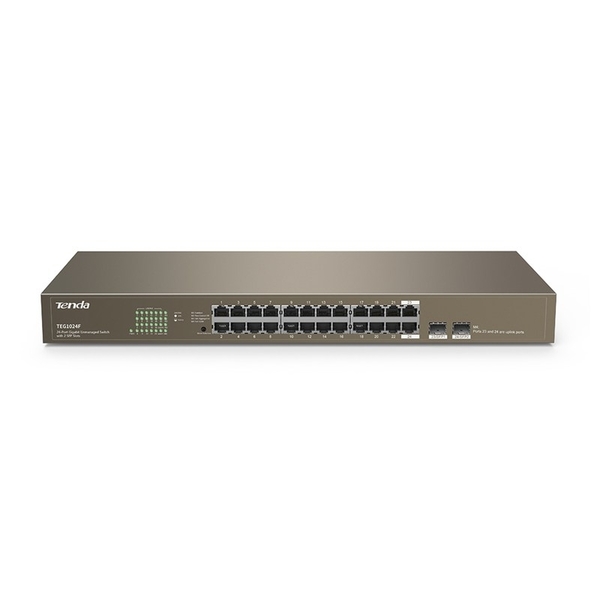

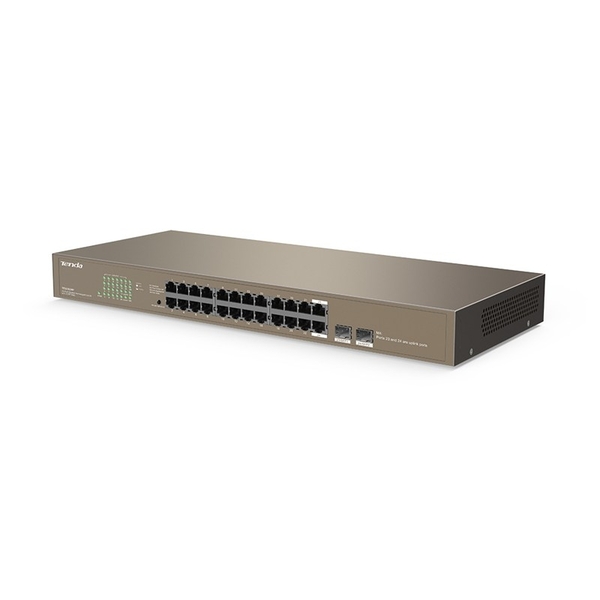

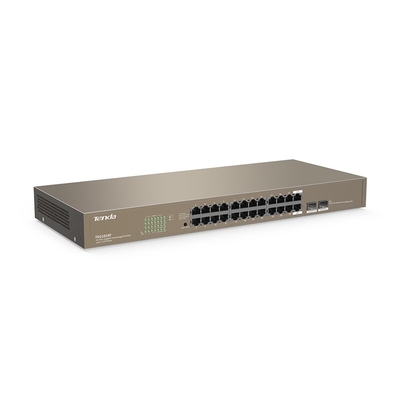

24-Port Gigabit Unmanaged Switch with 2 SFP Slots
Free shipping to 95% of Australia
You Might Also Want to Add
More infoMake 4 interest-free payments of $54.89 fortnightly and receive your order now.
Features:
TEG1024F is a 24-port gigabit rackmount switch providing easy-to-use, cost-effective and fast network for IP surveillance projects, offices, workgroups and small and medium-sized enterprises. With 2 gigabit SFP combo ports used to connect to Tenda optical modules, it can be used for long distance networking up to 20 km. TEG1024F also offers a data rate in full duplex of as high as 2000 Mbps, ensuring fast transmission of large files and smooth playback of videos. The switch provides 6 kV protection for all the RJ45 ports and the power module, ensuring stability and reliability of the switch. TEG1024F allows users to change its work modes among standard (default mode), flow control off, link aggregation and port VLAN, fitting multiple network environments, making it the perfect choice for you to extend or upgrade your high-speed, stable gigabit wired network at long distance.
| Standard & Protocol | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab |
| Transmission Media | 10Base-T: Cat. 3 UTP or better, 100Base-TX: Cat.5 UTP or better 1000Base-T: Cat.5e UTP or better, 1000BASE-X: MMF, SMF |
| Forwarding Speed | 10Mbps: 14880pps 100Mbps: 148800pps 1000Mbps: 1488000pps |
| Power Supply | Input: AC:100-240V 50/60Hz |
| Dimension | 440mm×178mm×44mm(L×W×H) |
| LED indicator | 1× Power, 24× Link/Act, 4×mode status lights |
| Switching Capacity | 48Gbps |
| Packet buffer | 256KB |
| MAC Address Table | 8K |
| Fan Quantity | Fanless |
| Power Consumption | Maximum : 13W (220V) |
| transmission mode | Store and Forward |
| Access Control | CDMA/CD |
| Mode | M1: Standard mode, the default mode of the switch. In that mode, all ports can communicate with each other. M2: Flow Control Off mode. In this mode, flow control is disabled on all ports. M3: Link Aggregation mode. In this mode, ports 23 and 24 form a static link aggregation group (Static LAG , SMAC+DMAC). M4: Port-based VLAN mode, ports 1 to 22 can communicate with uplink ports (ports 23 and 24) but cannot communicate with each other. |
| MAC Address Learning | Automatic update |
| Temperature | Operating Temperature: 0°C~40°C Storage Temperature: -40°C~70°C |
| Humidity | Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Certification | CCC, CE , FCC , RoHS |
| Related Products | TEG1008D 8-Port Gigabit Ethernet Switch TEG311SM Single-Mode MiniGBIC Module TEG1024D 24-Port Gigabit Ethernet Switch |
| System Requirement | Windows 8 32/64 bit , Windows 7 32/64 bit , Windows xp 32/64 bit , Linux , MAC OS |
Package Content:
1 x TEG1024F
1 x Power Cord, Rackmount Kit, Rubber Feet
1 x User Guide
