SKU: V28-ELETENDTEG1124P24250W

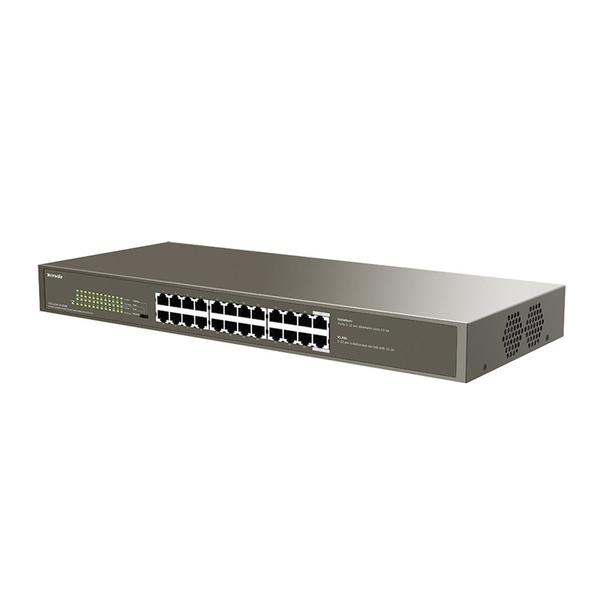

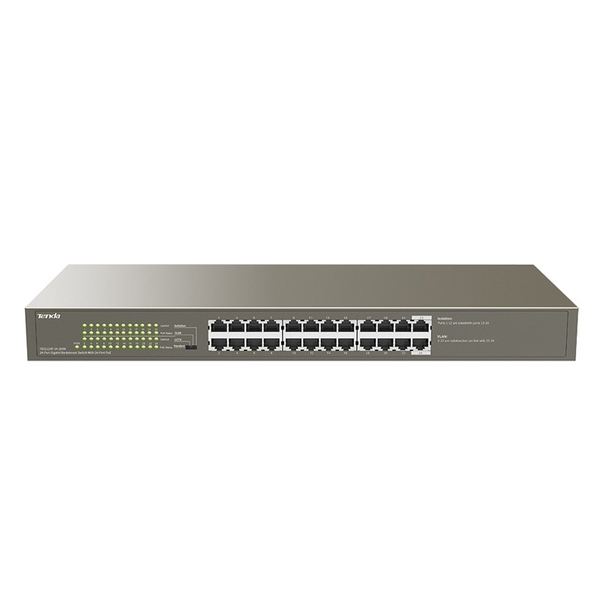

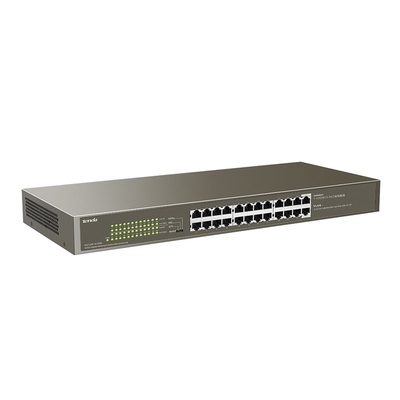

24-Port Gigabit Ethernet Switch

Free shipping to 95% of Australia


$493.87
Sold Out

afterpay More info.

Make 4 interest-free payments of $123.47 fortnightly and receive your order now.

Features:

TEG1124P-24-250W is a Tenda PoE switch that o ers 24 10/100/1000 Mbps Base-TX RJ45 ports. Ports 1-24 comply with the IEEE 802.3af standard (maximum PoE power output: 15.4 W) and 802.3at standard (maximum PoE power output: 30 W). The switch o ers a maximum PoE power output of 225 W and can supply power to and exchange data with APs, IP cameras, and IP phones through CAT5 cables. It also provides simple management modes such as CCTV, VLAN, and Isolation to help reduce cabling costs of IP terminals like APs and IP cameras

Standard & Protocol IEEE 802.3/IEEE 802.3u/IEEE 802.3ab/IEEE 802.3x/IEEE 802.3af/IEEE 802.3at
Indicator 24 × Link/Act per device
24 × PoE per device
1 × Power per device
Interface 24 10/100/1000Base-T ports(Data/Power)
Store &Forward Yes
exchange capacity 48 Gbp
Packet Forwarding Rate 35.6Mpps
RAM Data Buffer 4Mb
MAC Address Table 4K
PoE supply management Port 1-24 support IEEE802.3at/af PoE standard
PoE through pin 1 2 4 5 +/3 6 7 8 -
Input Power AC: 100-240V~50/60Hz
Dimension 440 × 178 × 44mm( W x D x H )
Power Consumption in full con guration:<250W
PoE Max Power Supply: 225W
Port Features Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
CCTV: the port cache is optimized and PoE ports 1-8 have higher priorities
over the other ports. All the ports of the switch can communicate with each other.
VLAN: ports 1 to 22 are isolated from each other, but can communicate with ports 23 and 24(uplink ports) respectively.
Isolation: ports 1 to 12 and Ports 13 to 24 belong to two di erent VLAN.This mode can be used to isolate supervision network and wireless network to make them not interfere with each other.
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Package Content:

1 x Tenda TEG1124P-24-250W 1000M and PoE 24-Port Gigabit Ethernet Switch with 24-Port PoE

(V28-ELETENDTEG1124P24250W)
